Glass making Steel making cryogenic air separation plants 1000 Nm3/h KDON-1000/1000

Name: Glass making Steel making cryogenic air separation plants 1000 Nm3h KDON10001000
Brand: HANGYANG
Price: 1 USD

China Glass making Steel making cryogenic air separation plants 1000 Nm3/h KDON-1000/1000 wholesale

Brand Name : HANGYANG

Model Number : KDON

Certification : CE/ASEM/GB

Place of Origin : China

MOQ : 1 SET

Price : according to actual requirement

Supply Ability : according to actual requirement

Delivery Time : according to actual requirement

Packaging Details : wooden case, nude packing, container

Product Name : KDON-1000/1000 Cryogenic Air Separation Plant

Application : Glass，Oil and Gas Field，Machinery & Construction，Metallurgy

Material : Carbon steel, Al, stainless steel

Purity : 99.6%O2,5ppm(O2)

Standard : CE/ASEM/GB

Pressure : 0.015/0.007

Package : Seaworthy packing

Contact Now

Cryogenic Air Separation Plant 1000 Nm3/h KDON-1000/1000 Glassmaking Steelmaking

Specifications:

Product List

MODEL CONTENTS		KDON-1000	KDON-1000	KDON-1100	KDON-1200/1000	KDON-1200/3000
GAN/LIN flow	Nm3/h	2000	300	3150	1000	3000/60L/h
GAN/LIN purity	ppm	≤10ppmO2	≤10ppmO2	≤1ppmO2	≤10ppmO2	≤3ppmO2
GOX/LOX flow	Nm3/h	1000	800/200	1100	1200/400L/h	1200
GOX/LOX purity	ppm	99.6% O₂	99.6% O₂	99.6% O₂	99.6% O₂	93%
GAN/LIN pressure	MPa	0.007	0.002	0.005	0.018	0.005/0.6
GOX/LOX pressure	MPa	0.015	0.014	0.0254	0.035/0.2	015

Typical Product: KDON-1000/1000 Cryogenic Air Separation Plant

Output, purity and pressure

	Flow (Nm3/h)	Purity	Pressure MPa(G)
GAN/LIN	1000	5ppm(O₂)	0.007
GOX/LOX	1000/ 50L/h	≥99.6%O₂	0.015/0.16

Description:

The employed process is air purified by molecular sieve at normal temperature, expansion turbine used to produce refrigerating capacity, and applying structural packing

Glass making Steel making cryogenic air separation plants 1000 Nm3/h KDON-1000/1000

Applications:

Metal production
Petroleum refining
Health care
Glassmaking
Petroleum refining
Shielding gas
Hardening Gas

Competitive Advantage:

The fractionating column: in order to guarantee the optimum technical and economical targets, the foreign advanced software for performance calculation is used to calculate and analyze the optimized process while the program developed by Hangyang itself.
The expansion turbine: the advanced design and processing software of NREC, USA is used for design of the performance and flow passage and for processing of the flow passages to integrate CAD—CAPP—CAM.
The process employed by this air separation plant utilizes molecular sieve to purify air at normal temperature, production of refrigerating capacity by booster expansion turbine.
The process employed by this air separation plant is an advanced and technologically experienced process to ensure reliable running, convenience operation, safety and low consumption.
All pressure vessels, pipelines and elements are strictly designed, fabricated and inspected in accordance with the applicable national codes.
The cold boxes for air separation plants and pipelines etc. inside columns are accepted by means of strength calculation.
Engineers available to service machinery overseas

Product Tags:

cryogenic air separation unit

cryogenic oxygen plant

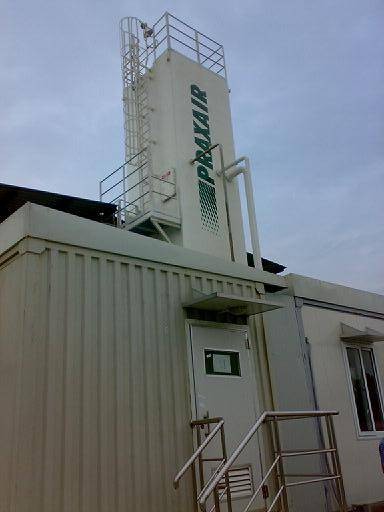

Glass making Steel making cryogenic air separation plants 1000 Nm3/h KDON-1000/1000 Images
