Cryogenic Air Separation Plant Steel making Industry Balance Gas GOX LOX

Cryogenic Air Separation Plant 200/100Y/25Y Nm3/h KDON-200/100Y/25Y Steelmaking Industry Balance Gas GOX LOX

Specifications:

Cryogenic Air Separation Plant Standards Product List

Typical Product: KDON-200/100Y/25Y Cryogenic Air Separation Plant

Output, purity and pressure

Description:

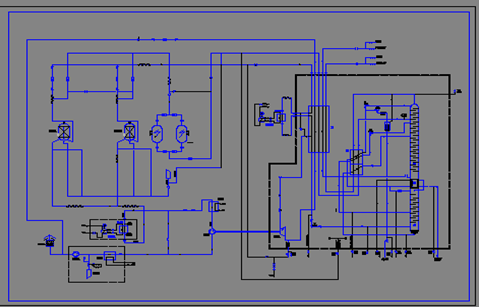

The process utilizes by this ASP is that purifying air with molecular sieve, which is complete low pressure with boosting expansion turbine. The process flow diagram of this KDON-200/100Y/25Y plant is as follows:

Applications:

1. Steelmaking
2. Chemicals
3. Source of energy
4. Petroleum refining
5. Balance Gas
6. Pulp & Paper
7. Environmental Calibration Gas
8. Electronics & Semi Conductors

Competitive Advantage:

1. The external compression process with molecular sieve for purification employed by this air separation is an experienced process which is easy to operate. The main equipments in cryogenic cold box are low pressure ones so as to ensure the high reliability and handy maintenance. The maintainability of parts which need repair is considered in design, such as convenience dismantlement and mounting of the parts, and cryogenic parts can be maintained at normal temperature end
2. All pressure vessels, pipelines and elements are strictly designed, fabricated and inspected in accordance with the applicable national codes. The cold boxes for air separation plants and pipelines etc. inside columns are accepted by means of strength calculation.
3. The main condensation evaporator can discharge liquid safely, which can effectively prevent the accumulation of dangerous impurities like hydrocarbon etc.,
4. High safety and reliability
5. Designed for long, stable and reliable running,
6. Rich historical experience over 60 years
7. Convenient operation and maintenance
