Chemicals Nm3/h Air Separation Unit Depth refrigerant Pressure Test

Name: Chemicals Nm3h Air Separation Unit Depth refrigerant Pressure Test
Brand: HANGYANG
Price: 1 USD

China Chemicals Nm3/h Air Separation Unit Depth refrigerant Pressure Test wholesale

Brand Name : HANGYANG

Model Number : KDON

Certification : CE/ASEM/GB

Place of Origin : China

MOQ : 1 set

Price : according to actual requirement

Supply Ability : according to actual requirement

Delivery Time : according to actual requirement

Packaging Details : wooden case, nude packing, container

Product Name : Air Separation unit

Application : Glass, Oil and Gas Field, Machinery & Construction，Metallurgy

Usage : Produce Oxygen and Nitrogen

Package : Seaworthy packing

Pressure : 7~18 (kPa G)

Contact Now

Air Separation Unit KDON-650/650 Nm³/h Air Separation Plant Depth refrigerant Pressure Test

Specifications:

Air Separation Unit KDON 500~1500 Nm3/h Series

MODEL CONTENTS		KDON-500/1000	KDON-500/500	KDON-500/4000	KDON-600/600	KDON-1500/3000
GOX flow	Nm³/h	500	500/50(Y)	500	600	1500
GOX purity	%	99.6%	99.6%	99%	99.6%	99.6%
GOX pressure	kPa	15	35(200)	20	24	15
GAN flow	Nm³/h	1000	500	500/3500	600	3000
GAN purity	%	≤10ppmO2	≤10ppmO2	≥99.6%N2	≤10ppmO2	≤10ppmO2
GAN pressure	kPa	8	18	7	18	10

Typical Product: KDON-650/650 Nm³/h Air Separation Unit

Output, purity and pressure

	Flow (Nm3/h)	Purity	Pressure kPa(G)
GOX	650	≥99.6%O₂	24
GAN	650	≤5ppmO₂	18

Description:

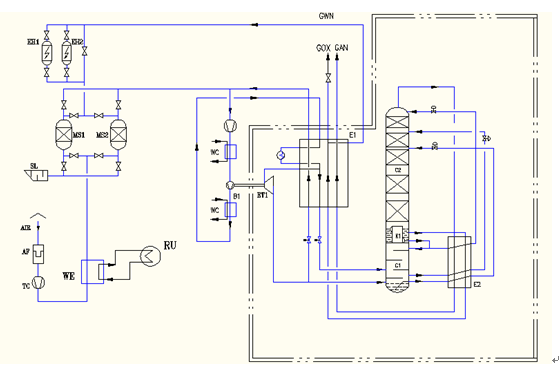

This KDON-650/650 plant’s process is using MS to purify air, and boosting turbo expander to refrigerate; and the fractionating column is convection sieve plant.

Chemicals Nm3/h Air Separation Unit Depth refrigerant Pressure Test

Applications:

Combustion Gas
Fuel Gas
Nitrogen Purging & Pressurize Test
Nitrogen and Helium Leak Test
Depth refrigerant
Pharmaceutical and biotechnology
Automotive and transportation equipment
Chemicals

Competitive Advantage:

The proposed air separation plant is designed for long, stable and reliable running, economization of energy, convenient operation and maintenance and the up-to-date international advanced air separation technology is incorporated.
In order to guarantee the optimum technical and economical targets, the foreign advanced software for performance calculation is used to calculate and analyze the optimized process while the program developed by Hangyang itself.
The expander is constructed integrated assembly and dismantlement can be carried out at normal temperature end for convenience maintenance and inspection.
The advanced, reliable and special design software is used for calculation of the system performance and of the structure of adsorber to ensure both the advantages and reliability of this system.
PLC programmable controller and imported solenoid valve are adopted and to be eliminate dust by automatic impulse backblowing, which automatic unmanned operation can be achieved. This PLC can be supplied integrally with the whole set of plant.
The main condensation evaporator can discharge liquid safely, which can effectively prevent the accumulation of dangerous impurities like hydrocarbon etc.

Product Tags:

air separation unit process

gas air separation plant
