Air Separation Unit KDON-12000/24000 Nm3/h Large Size Air Separation Plant Fertilizer Industry
Specifications:
Air Separation Unit KDON-10000~21000 GOX Series
| MODEL CONTENTS | KDON-12500/6500 | KDON-15000/40000 | KDON-15000 | KDON-15000 | KDON-21000/30000 |
| GAN/LIN flow | Nm3/h | 6500 | 40000/350 | 15000/150 | 6500 | 30000 |
| GAN/LIN purity | ppm | ≤5ppmO2 | ≤10ppmO2 | ≤10ppmO2 | ≤50ppmO2 | ≤10ppmO2 |
| GOX/LOX flow | Nm3/h | 12500 | 15000/50 | 15000/300 | 15000/150 | 21000/300 |
| GOX/LOX purity | ppm | 99.6% O2 | 99.8% O2 | 99.6% O2 | 99% O2 | 99.6% |
| GAN/LIN pressure | MPa | 0.007 | 0.008 | | 0.005 | 0.012 |
| GOX/LOX pressure | MPa | 0.015 | 0.007 | | 0.08 | 0.015/0.12 |
| LAr flow | Nm3/h | 400 | | 535 | 340 | 580 |
| LAr purity | ppm | ≤2 ppm O2≤3 ppm N2 | | ≤2ppmO2 ≤3ppmN2 | ≤2ppmO2 ≤3ppmN2 | 99.999%2 |
| LAr pressure | MPa | 0.16 | | | 0.16 | 0.16 |
Typical Product: KDON-12000/24000 Air Separation Unit
Output, purity and pressure
| Product | Output (Nm3/h) | Purity | Pressure MPa(G) |
| GAN/LIN | 24000/100 | 10ppmO2 | 0.008 |
| GOX/LOX | 12000/200 | ≥99.6%O2 | 0.015 |
| LAr | 300 | ≤2ppmO2 ≤3ppmN2 | |
Description:

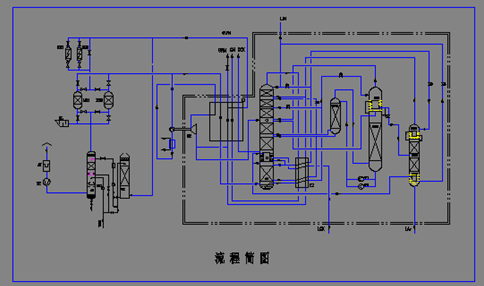

The external compression process utilized by this KDON-12000/24000 Air Separation Unit is completely low pressure, in which air is absorbed and purified by molecular sieve, and air turbine boosting expander is utilized to produce refrigeration capacity.
The equipments of this plant meet the related professional technical manual and standard.
The display of the process parameters for all units and the main operation adjustment function can be carried out through computers in the center control room, and can be displayed in other control rooms, which can well meet the requirements of informatization and network for the factory.
Liquid oxygen is extracted from the main condenser evaporator, which can effectively prevent the accumulation of dangerous impurities such as hydrocarbon. The safe running of condenser evaporator can be effectively guaranteed without special operation and maintenance.
Applications:
- Fertilizer Industry
- Petrochemical industry
- Coal chemical industry
- Aerospace and aviation industry
- Food refrigerating industry
- Welding and metal processing
- Pharmaceutical and biotechnology
- Automotive and transportation equipment
Competitive Advantage:
- It has the advantages of reliable running, advance process and easy operation.
- The equipments of this plant have the advantages of economy and reasonable configuration for units, safe and low consumption, reliable running.
- This plant and its units are specially designed and optimized for the process according to the local weather and engineering specifications to make sure the ASP can adapt to the local environment.
- The Hangyang oxygen turbo compressor is specially designed for pressured conveying oxygen, which furthest meets the special requirement for the pressure oxygen safety.
- Fire protection and security measures are complete, detection control measures are perfect, and safety is good.
- Design and manufacture is excellent, material and outsourced accessories are exquisite, continuous running period is long, and it is stable and reliable.
- Operation is easy, the full automatic detection control can avoid the artificial errors.
- Oxygen channel is completely isolated from the outside world, so that the oxygen is non-pollution, and the purity without drop.
- Less quick-wear parts, easy maintenance.
- Low noise.
