Gas Liquefaction Plant 5000 Nm3/h YPO-5000 Liquefaction Oxygen Equipment
Specifications:
The followings are the standard products for the Liquefaction Oxygen Equipment YPO series which are manufactured by our company. Regarding other particular product can be calculated and designed according to the actual requirements.
| MODEL CONTENTS | YPO-2000 | YPO-2500 | YPO-3600 | YPO-4500 | YPO-10000 |
| LOX flow | Nm3/h | 2000 | 2500 | 3600 | 4500 | 10000 |
| LOX purity | ppm | Same as the feed air | Same as the feed air | Same as the feed air | Same as the feed air | Same as the feed air |
| LOX pressure | MPa | ～0.2 | ～0.3 | ～0.2 | ～0.2 | ～0.2 |
| Subcooled | K | 3 | 3 | 3 | 3 | 3 |
Typical Product:4500 Nm3/h YPO-4500 Liquefaction Oxygen Equipment
Output, purity and pressure
| | Flow (Nm3/h) | Purity | Pressure MPa(G) | Subcooled (K) |
| LOX | 4500 (g) | Same as the feed air | 0.2 | 3 |
Description:

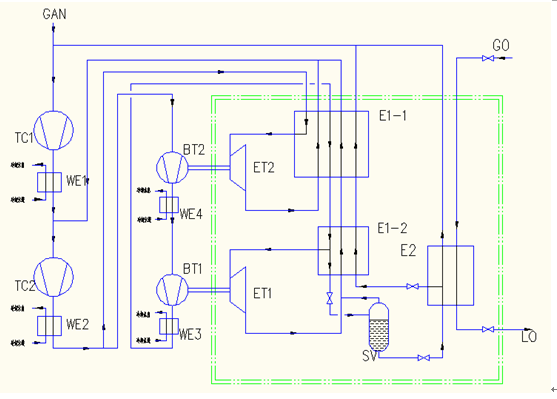

The low pressure nitrogen compressed through nitrogen compressor mixing with the reflux gas of liquefaction plant is compressed through the gas transmission nitrogen turbo-compressor. The compressed gas is divided into two streams. one stream is expanded by high temperature expander, and goes out of cold box after being rewarmed. The other one stream is boosted in series through the booster of the expander, and then it goes out of cold box with rewarmed through main heat expander after being expanded in the low temperature expander, and back to the inlet of circulating section of nitrogen turbo-compressor after being rewarmed in the main heat exchanger. Part nitrogen goes into the gas-liquid separator after being liquefied. The liquid nitrogen in the separator is subcooled in the liquid nitrogen subcooler, and then goes into the oxygen heat exchanger to cool oxygen, part of which is extracted and back to the main heat exchanger as reflux gas, and the rest liquid nitrogen goes out of heat exchanger and back to the inlet of circulating section of nitrogen turbo-compressor.
Applications:
1. Source of energy
2. Papermaking
3. Health care
4. Petroleum refining
5. Used for inerting storage tanks of ships and tanks for petroleum products, or for protecting edible
oil product from oxidation.
Competitive Advantage:
1. Our company has a high market share in China
2. Our company has the strong ability for supporting, and steady after-sale service
3. Our company owns the most advanced technological level
4. Our company’s economic effectiveness is in the lead of the industry in China
5. Low pressure process.
6. Successful experience of made many plants
