Cryogenic liquid nitrogen plants For Liquid Protective Gas 1300 / 50Y Nm3/h

Name: Cryogenic liquid nitrogen plants For Liquid Protective Gas 1300 50Y Nm3h
Brand: Hangyang
Price: 1 USD

China Cryogenic liquid nitrogen plants For Liquid Protective Gas 1300 / 50Y Nm3/h wholesale

Brand Name : Hangyang

Model Number : KDN

Certification : CE/ASEM/GB

Place of Origin : China

MOQ : 1 set

Price : according to actual requirement

Payment Terms : negotiation

Supply Ability : according to actual requirement

Delivery Time : according to actual requirement

Packaging Details : wooden case, nude packing, container

Product Name : KDN-1300/50Y Liquid nitrogen generator

Application : Glass，Oil and Gas Field，Machinery & Construction，Metallurgy

Purity : ≤10ppm(O2)

Service : Engineers available to commissioning service overseas

Pressure : 0.7/0.7 MPa (G)

Contact Now

Liquid nitrogen generator 1300/50Y Nm3/h KDN-1300/50Y nitrogen generation unit Cryogenic Liquid Protective Gas

Specifications:

The standard products for the Liquid Nitrogen Generation Equipment KDN series manufactured by our company

MODEL CONTENTS		KDN-1280144Y	KDN-1500	KDN-1500/50Y	KDN1600
GAN/LIN flow	Nm³/h	1280/144	1500	1500/50L	1600
GAN/LIN purity	ppm	10ppm(O₂)	10ppm(O₂)	10ppm(O₂)	1ppm(O₂)
GAN/LIN pressure	MPa	0.6/0.6	0.5	0.6/0.6	0.01
Subcooled	K	286.15/99.15	286.15	286.15/ 99.15	286.15

Typical Product: KDN-1300/50Y Liquid nitrogen generator

Output, purity and pressure

	Flow (Nm3/h)	Purity	Pressure MPa(G)	Subcooled (K)
GAN/LIN	1300/50	≤10ppm(O₂)	0.7/0.7	286.15/99.15

Description:

The proposed plant’s process is that air is purified through molecular sieve and waste nitrogen is refluxed and expanded.

Cryogenic liquid nitrogen plants For Liquid Protective Gas 1300 / 50Y Nm3/h

Applications:

1. Environmental Calibration Gas

2. Lifting Gas

3. Mining Industry

4. Spectroscope Gas

5. Oil and Gas Field

6. Metallurgy

7. Blanketing Gas

Competitive Advantage:

1. Long service life

2. Low-power high-efficiency

3. No loss, high returns

4. Quick delivery

5. The plate and fin heat exchangers are brazed by large size vacuum brazing furnace which is the first one in China imported from SW Corp. in USA. The cores vacuum brazed by this furnace are of good quality and in long service life. Hangyang has developed new and efficient fin types in recent years to get the heat exchangers more efficient.

Product Tags:

nitrogen generation system

nitrogen generation unit

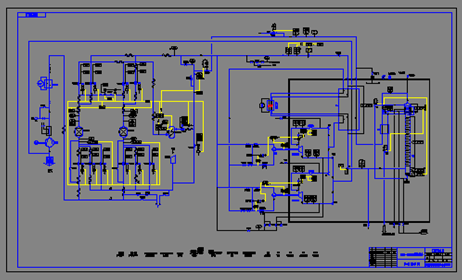

Cryogenic liquid nitrogen plants For Liquid Protective Gas 1300 / 50Y Nm3/h Images
